Leupold Pioneer Riflescopes – A Classic Line of Early American Optics

Overview & Design

First advertised in 1949, the Leupold Pioneer was Leupold & Stevens’ first riflescope offered in multiple fixed-power configurations. While early references called it simply the “Leupold Riflescope,” the Pioneer name came to represent Leupold’s streamlined, lightweight scopes designed for saddle guns, bolt-action hunting rifles, and varmint rifles alike. Models were available in 2½×, 4×, and eventually 8× power by 1956.

The Pioneer line stood out for its slim, low-profile construction and rugged steel 7/8-inch tubes. Early models had no internal adjustments—windage and elevation were made in the mount. But later versions (like the 4X Pioneer) featured internal micrometer-style elevation turrets with the Adjusto-Mount still used for windage. All models were nitrogen processed by the early 1950s and backed by Leupold’s lifetime service guarantee.

“Leupold Pioneer Scopes… rugged, dependable, and fog-proof for life… sharp sight picture pays off during ‘kill time’ when other scopes fail.”

Specifications

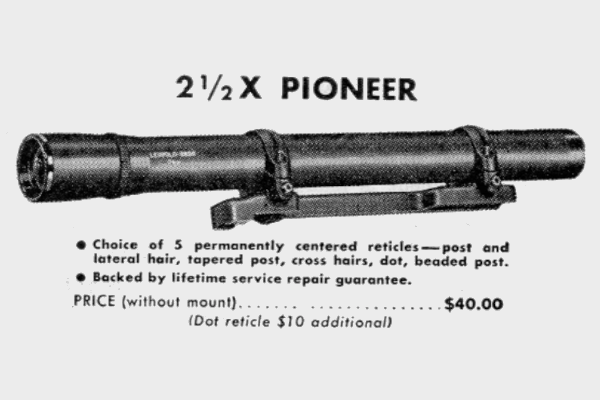

• Models: 2½× Pioneer, 4× Pioneer, 8× Pioneer
• Magnification: Fixed 2½×, 4×, or 8× (depending on model)
• Field of View:
  • 2½× Pioneer: 40 ft @ 100 yards
  • 4× Pioneer: 35 ft @ 100 yards
  • 8× Pioneer: 15 ft @ 100 yards
• Tube Diameter: 7/8 inch steel
• Length: 10–11⅝ inches depending on model
• Weight: 4½ oz (2½×), 8 oz (4×), 6½ oz (8×)
• Eye Relief: 2½–4½ inches
• Adjustment Style:
  • 2½×: External (via Adjusto-Mount)

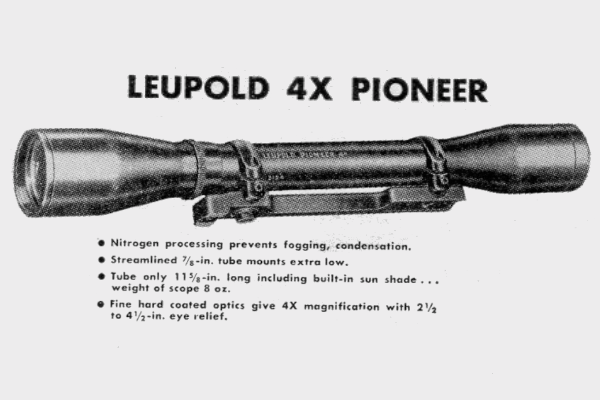

  • 4×: Internal elevation with external windage (Adjusto-Mount)
  • 8×: Internal windage/elevation and parallax adjustment
• Reticles: Medium Crosshairs, Tapered Post, Dot, Beaded Post (some models)
• Mounts: Designed for Leupold Adjusto-Mount; some models offered Detacho-Mount compatibility
• Fogproofing: Nitrogen processed by 1952
• Original Prices:
  • 2½× Pioneer: $45.00
  • 4× Pioneer: $64.50–$59.50
  • 8× Pioneer: $75.00

Legacy

The Pioneer line spanned nearly a decade of production and laid the groundwork for Leupold’s reputation as a rugged, American-made riflescope manufacturer. While later scopes like the Mountaineer and Westerner introduced fully internal adjustments and parallax correction, the Pioneers remained popular with hunters and shooters who valued simplicity, clarity, and a fogproof guarantee.

From saddle guns to varmint rifles, the Leupold Pioneer helped define postwar sporting optics and is still admired by collectors today.

Discontinued: Circa 1958
